Understanding Different Types of Flow Meters: A Comprehensive Guide

Flow meters are essential devices that measure the flow rate of fluids or gases in pipes and channels. Different types of flow meters are used in various applications, including oil and gas, water treatment, chemical processing, and food and beverage industries. Each flow meter type works on different principles and provides accurate measurements depending on the fluid properties, flow rate, and the application's requirements. In this article, we will provide a comprehensive guide to different types of flow meters, including their working principles, advantages, and disadvantages.

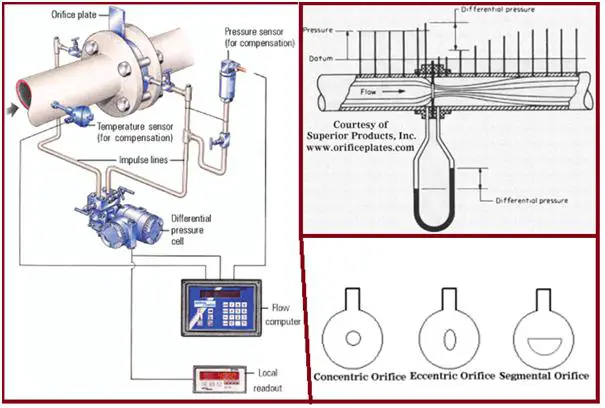

Differential Pressure Flow Meters: Differential pressure (DP) flow meters are the most widely used type of flow meter. They work on the principle of Bernoulli's equation, which states that the pressure of a fluid decreases as its velocity increases. DP flow meters measure the pressure drop across a constriction in the pipe and use it to calculate the flow rate. Orifice plates, Venturi tubes, and flow nozzles are common types of DP flow meters. These flow meters are relatively inexpensive, simple to install, and require low maintenance. However, they are not suitable for measuring low flow rates and can cause significant pressure losses. Positive Displacement Flow Meters: Positive displacement (PD) flow meters measure the volume of fluid passing through the meter by dividing it into small, known volumes and counting them. These flow meters work on the principle of reciprocating or rotating the motion of a mechanical element that displaces the fluid. Examples of PD flow meters include oval gear, nutating disc, and rotary vane flow meters. PD flow meters provide highly accurate measurements, even at low flow rates, and can handle a wide range of fluids. However, they are relatively expensive, require regular calibration, and can be affected by viscosity changes. Velocity Flow Meters: Velocity flow meters measure the velocity of a fluid passing through the meter and convert it into the flow rate. These flow meters work on the principle of creating a proportional relationship between velocity and flow rate. Turbine, paddlewheel, electromagnetic, and ultrasonic flow meters are examples of velocity flow meters. Velocity flow meters can handle high flow rates, are less affected by viscosity changes, and can provide instantaneous flow measurements. However, they require a straight pipe run to achieve accurate readings and can be affected by fluid turbulence. Mass Flow Meters: Mass flow meters measure the mass of a fluid passing through the meter and convert it into the flow rate. These flow meters work on the principle of creating a proportional relationship between mass and flow rate. Coriolis, thermal, and vortex flow meters are examples of mass flow meters. Mass flow meters provide accurate measurements independent of fluid properties, viscosity changes, or variations in temperature and pressure. However, they are relatively expensive, require a steady flow rate, and can be affected by fluid density changes. Ultrasonic Flow Meters: Ultrasonic flow meters measure the velocity of a fluid by transmitting and receiving ultrasonic signals through the fluid. These flow meters work on the principle of creating a proportional relationship between the time taken for the ultrasonic signals to travel upstream and downstream and the fluid velocity. Ultrasonic flow meters are non-invasive, can handle a wide range of fluids, and provide accurate measurements without interrupting the flow. However, they can be affected by fluid properties, require a clean fluid path, and are relatively expensive.

Description of each type of flow meter Differential Pressure Flow Meters, Positive Displacement Flow Meters, Velocity Flow Meters, and Mass Flow Meters are the four main types of flow meters used in industrial applications. Each type of flow meter has its own set of advantages and disadvantages, making it suitable for specific applications. Differential Pressure Flow Meters are commonly used for measuring the flow of liquids and gases in large pipelines. Positive Displacement Flow Meters are suitable for measuring viscous liquids, while Velocity Flow Meters are ideal for measuring clean liquids with low viscosity. Mass Flow Meters, on the other hand, are used for measuring mass flow rate and are commonly used for gases. In conclusion, flow meters are essential devices in the industrial world. They allow for accurate measurement of fluid flow rates, which is crucial in a variety of industries. The four main types of flow meters are Differential Pressure Flow Meters, Positive Displacement Flow Meters, Velocity Flow Meters, and Mass Flow Meters, each with its own unique set of advantages and disadvantages. Understanding the different types of flow meters and their applications can help users make informed decisions when selecting the best flow meter for their specific needs.
